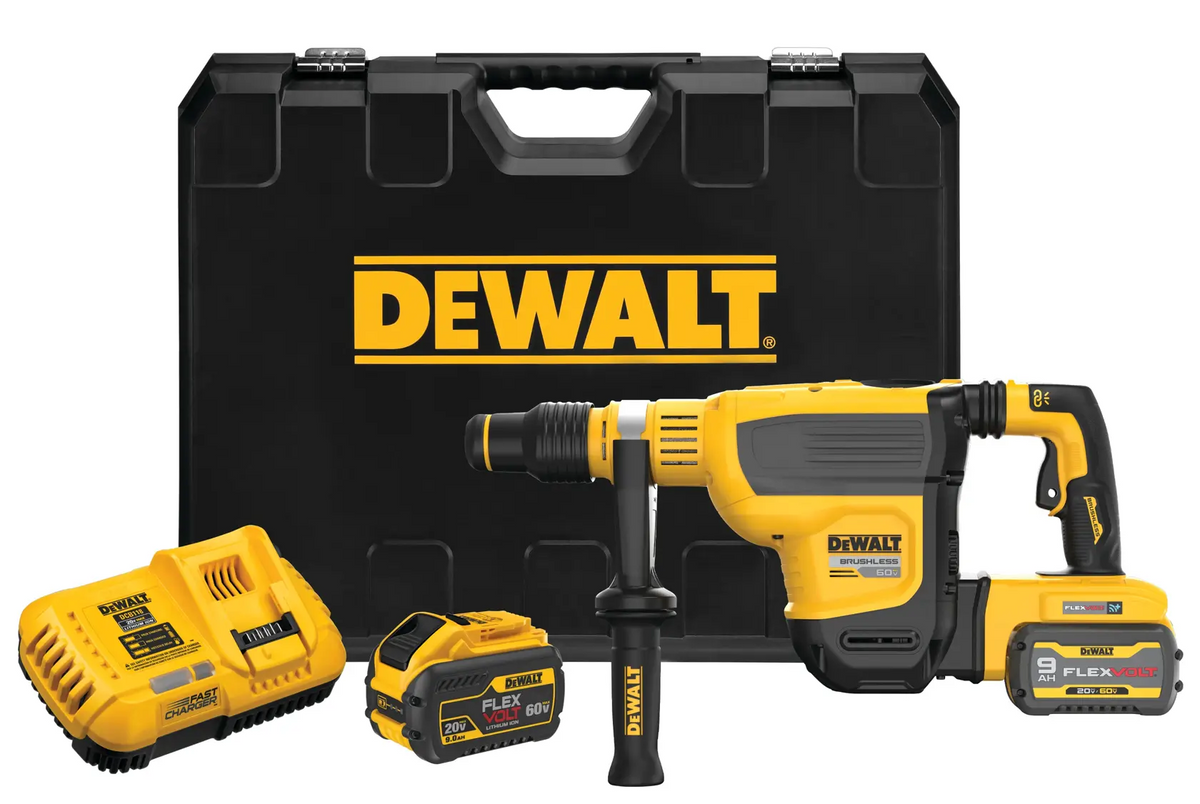

DEWALT DCH614X2 60V MAX Brushless SDS MAX 1-3/4-In. Rotary Hammer Kit
Heavy-Duty Cordless Combination Rotary Hammer with 2 Batteries and Charger
The DEWALT DCH614X2 Rotary Hammer Kit is designed for demanding drilling and chipping applications where cordless power and mobility are essential. This 60V MAX brushless SDS MAX combination rotary hammer delivers up to 10.5 joules of impact energy for drilling and chipping in hard concrete and demanding jobsite applications.
Powered by a brushless motor and German-engineered mechanism, the DCH614X2 uses constant speed electronics to maintain performance under load. Its midweight design is suited for horizontal drilling, #4 to #8 rebar dowel applications, dry coring up to 4 inches, wall chipping, and ground rod driving.
The hammer features a 7-position variable-speed control for precision hole placement, drilling, and chipping. The anti-rotation E-CLUTCH system shuts down the tool during bind-up situations, while Active Vibration Control helps reduce vibration felt at the handles compared with rotary hammers without this feature.
The DCH614X2 kit includes two 20V/60V MAX FLEXVOLT 9.0Ah batteries, a charger, and a kit box for jobsite portability. Integrated wireless tool control also allows the tool to link with the DEWALT DCV585 60V MAX dust extractor for remote extractor activation.
Key Features – DEWALT DCH614X2
- 60V MAX cordless SDS MAX combination rotary hammer
- Up to 10.5 joules of impact energy
- Brushless motor with German-engineered mechanism
- 1-3/4-inch (44mm) drilling capacity
- Anti-rotation E-CLUTCH system for bind-up protection
- Active Vibration Control system helps reduce vibration
- Constant speed electronics maintain speed under load
- 7-position variable-speed control
- Suitable for drilling, chipping, and dry coring applications
- Includes two 9.0Ah 20V/60V MAX FLEXVOLT batteries
- Includes charger and kit box
- Integrated wireless tool control for compatible dust extraction
- Tag ready for DEWALT Tool Connect tracking
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DEWALT |
| Model Number | DCH614X2 |
| Product Type | Cordless SDS MAX Combination Rotary Hammer |
| Voltage | 60V MAX |
| Cordless or Corded | Cordless |
| Power Source | Cordless |
| Motor Type | Brushless |
| Chuck Type | SDS MAX |
| Impact Energy | Up to 10.5 Joules |
| Maximum Drill Capacity | 1-3/4 in. (44mm) |
| Speed Control | 7-Position Variable Speed |
| Vibration Control | Active Vibration Control |
| Clutch System | Anti-Rotation E-CLUTCH |
| Speed Electronics | Constant Speed Electronics |
| Battery Type | 20V/60V MAX FLEXVOLT |
| Battery Quantity | 2 |
| Battery Capacity | 9.0Ah Each |
| Charger Included | Yes |
| Kit Box Included | Yes |
Ideal Applications
- Heavy-duty concrete drilling
- Concrete chipping
- Horizontal drilling
- #4 to #8 rebar dowel applications
- Dry coring up to 4 inches
- Mid to upper wall chipping
- Ground rod driving
- Commercial construction jobsites
