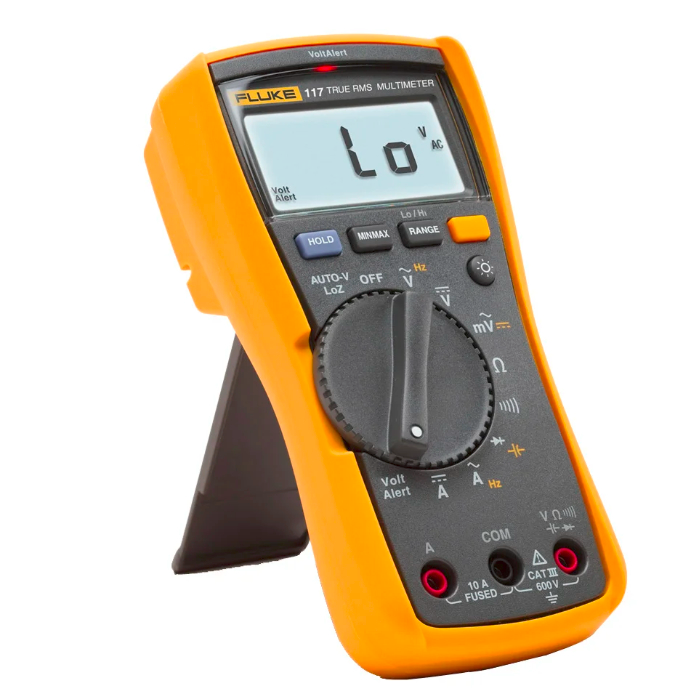

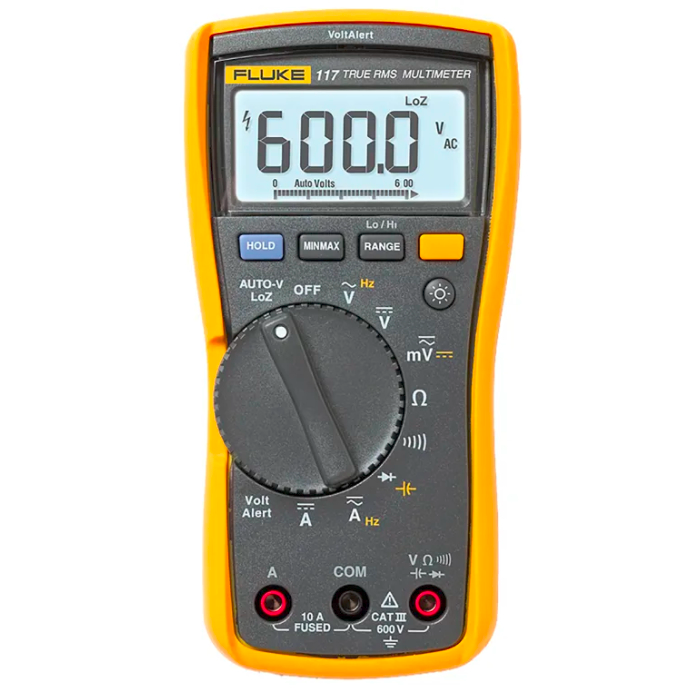

Fluke 117 True RMS Multimeter
Professional Digital Electrical Tester
The Fluke 117 True RMS Multimeter is a premium digital multimeter designed for professional electricians, maintenance engineers, and industrial technicians. Featuring True-RMS technology, it delivers highly accurate measurements on both linear and non-linear electrical systems.
The Fluke 117 measures AC/DC voltage, AC/DC current, resistance, frequency, capacitance, continuity, and diode functions. Built-in VoltAlert® non-contact voltage detection and AutoVolt technology improve safety while reducing troubleshooting time by automatically identifying AC or DC voltage.
Its low input impedance (LoZ) helps eliminate false readings caused by ghost voltage, while the large backlit display with analog bar graph provides clear, easy-to-read measurements even in low-light environments. Additional Min/Max/Average recording and Data Hold functions make diagnostics faster and more reliable.
Built to Fluke's renowned quality standards, the Fluke 117 is CAT III 600V safety rated, making it ideal for residential, commercial, and industrial electrical applications.
Key Features – Fluke 117 True RMS Multimeter
- True-RMS measurements for maximum accuracy
- VoltAlert® non-contact voltage detection
- AutoVolt automatic AC/DC voltage selection
- Low input impedance (LoZ) prevents ghost voltage
- Measures AC/DC voltage and current
- Resistance, frequency, capacitance and diode testing
- Continuity testing with audible buzzer
- Large backlit display with analog bar graph
- Min/Max/Average recording and Data Hold
- CAT III 600V safety rated
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Fluke |
| Model Number | 117 |
| SKU | FLUKE117 |
| Product Type | True RMS Digital Multimeter |
| AC Voltage Range | Up to 600V AC |
| DC Voltage Range | Up to 600V DC |
| AC/DC Current | Up to 20A |
| Resistance Range | Up to 40MΩ |
| Capacitance Range | Up to 10,000µF |
| Frequency Range | Up to 50kHz |
| True RMS | Yes |
| VoltAlert® | Non-Contact Voltage Detection |
| AutoVolt / LoZ | Automatic AC/DC Detection with Low Input Impedance |
| Display | Backlit LCD with Analog Bar Graph |
| Functions | Voltage, Current, Resistance, Frequency, Capacitance, Continuity & Diode Test |
| Recording Functions | Min / Max / Average & Data Hold |
| Safety Rating | CAT III 600V |
| Warranty | 3-Year Manufacturer Warranty |
Ideal Applications
- Commercial electrical maintenance
- Industrial electrical troubleshooting
- Residential electrical installations
- Control panel diagnostics
- Electrical inspections and servicing
- General-purpose electrical testing
