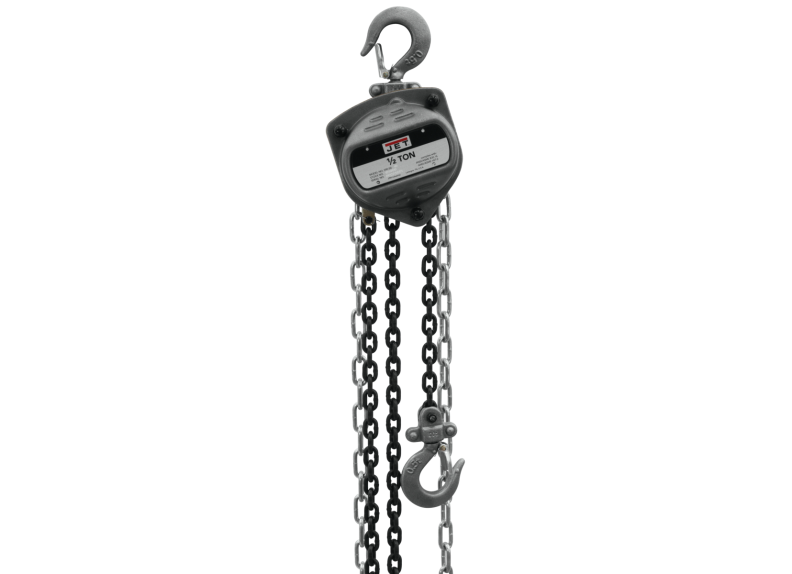

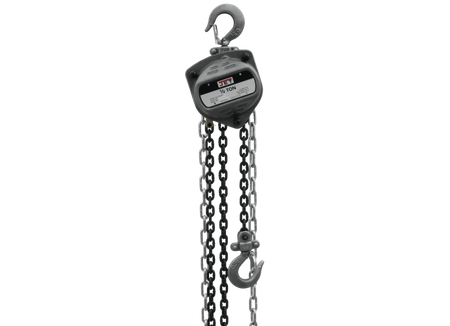

JET 101901 S90-050-15 1/2 Ton Hand Chain Hoist with 15 Ft Lift
Heavy-Duty Manual Chain Hoist with Grade 80 Load Chain
The JET 101901 S90-050-15 Hand Chain Hoist is engineered for dependable lifting performance in demanding industrial, construction, maintenance, and contractor applications. With a 1/2-ton lifting capacity and a 15-foot lift height, this manual chain hoist delivers smooth, reliable operation in confined spaces and low-headroom environments.
Constructed with a rugged all-steel body, the S90 Series features a Grade 80 black oxide coated load chain, heat-treated load plates, and corrosion-resistant internal components for exceptional durability. Needle bearings support the load sheave to improve efficiency while the Weston-style double ratchet pawl brake provides enhanced load security and operator safety.
Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging and include durable cast steel safety latches secured with Allen screws and lock nuts. The compact lightweight design makes installation and operation easier in tight work areas.
Ideal for warehouses, fabrication shops, construction sites, maintenance facilities, and industrial lifting applications, the JET S90 Hand Chain Hoist delivers reliable performance backed by JET quality.
Key Features – JET 101901
- 1/2-ton manual hand chain hoist
- 15-foot standard lifting height
- Heavy-duty all-steel construction
- Grade 80 black oxide coated load chain
- 360° rotating alloy steel hooks
- Heat-treated load plates for durability
- Weston-style double ratchet brake system
- Needle bearing supported load sheave
- Compact design for low headroom applications
- Corrosion-resistant internal components
Technical Specifications
| Specification | Details |
|---|---|
| Brand | JET |
| Model Number | 101901 (S90-050-15) |
| Product Type | Hand Chain Hoist |
| Load Capacity | 1/2 Ton (1,100 lbs) |
| Lift Height | 15 Feet |
| Load Chain Size | 5 × 15 mm |
| Load Chain | Grade 80 Black Oxide Coated Steel |
| Hooks | 360° Rotating Alloy Steel Hooks |
| Brake System | Weston Style Double Ratchet Pawl |
| Headroom | 11 Inches |
| Pull to Lift Rated Load | 58 lbs |
| Net Weight | 24 lbs |
| Construction | Heavy-Duty All Steel |
| Warranty | Lifetime |
Ideal Applications
- Industrial lifting
- Construction sites
- Warehouse operations
- Equipment maintenance
- Machine installation
- Steel fabrication
- Manufacturing facilities
- Contractor lifting applications
Available at ToolKing.com – trusted supplier of JET lifting equipment, manual chain hoists, industrial material handling products, and professional lifting solutions.
